O-Rings for Automotive Applications
Precision O-rings for engine oil systems, fuel systems, cooling circuits, transmissions, turbocharger sealing, and EV battery thermal management.

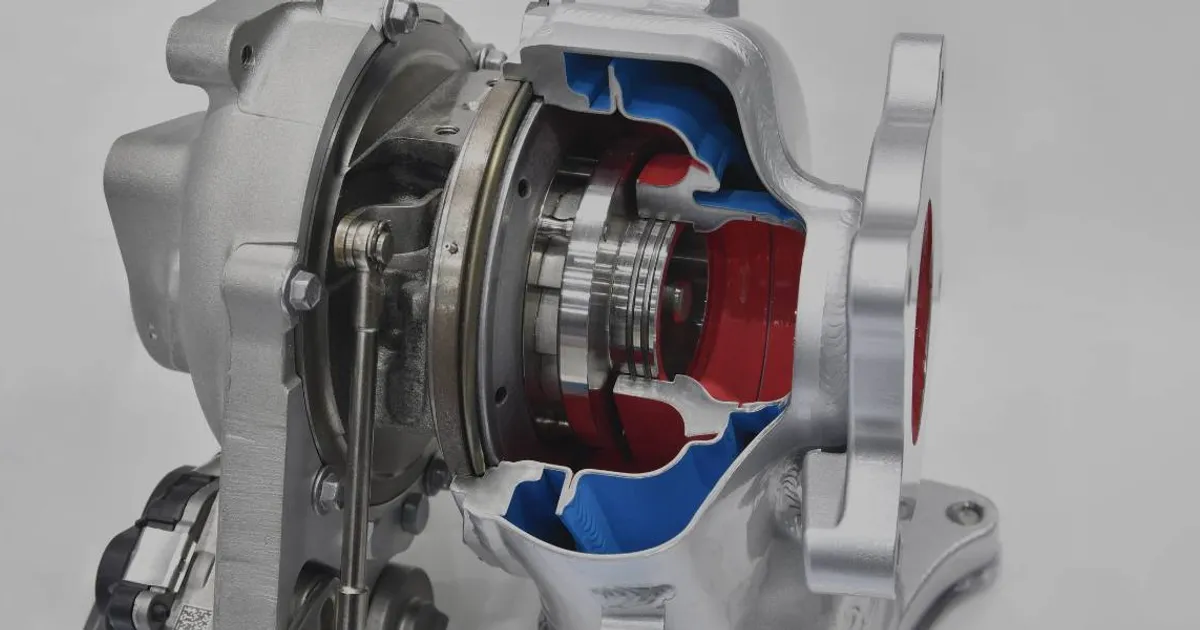

Overview
Automotive O-rings encounter a wide range of fluids and temperatures within a single vehicle. Engine oil, transmission fluid, coolant, fuel, brake fluid and air conditioning refrigerant each require different O-ring materials. Using the wrong material in an automotive application causes leaks, fluid contamination and component failure that can lead to costly warranty claims, roadside breakdowns, and safety hazards. Modern vehicles contain hundreds of O-rings across the powertrain, chassis, HVAC, and fluid handling systems, and each must be specified for its specific chemical environment, temperature envelope, and service life target.
Modern vehicles with turbocharged engines, direct injection fuel systems and high-efficiency transmissions place increasingly demanding requirements on seal materials. Engine bay temperatures have risen significantly with downsized turbocharged engines, and modern low-viscosity engine oils have different solvency characteristics than previous formulations — factors that influence O-ring material selection. Turbocharger oil feed lines can reach +150°C locally, and turbine housing seals may exceed +200°C during high-load operation. Direct injection fuel systems operate at pressures up to 350 bar, requiring O-rings that resist both high-pressure extrusion and the aromatic content of modern fuels including ethanol blends. The shift to electrification has introduced new sealing challenges in battery thermal management systems, where O-rings must seal dielectric coolants and maintain performance over 10-15 year vehicle lifespans.
Fuel system sealing has become more complex with the widespread adoption of ethanol-blended fuels (E10, E85), biodiesel blends, and high-aromatic gasoline formulations. Ethanol is a polar solvent that causes NBR to swell excessively and lose mechanical strength over time. FKM is the standard material for modern fuel injector O-rings, fuel rail seals, and in-tank fuel pump seals because it resists ethanol, methanol, and aromatic hydrocarbons. For flex-fuel vehicles (FFV) capable of running on E85, FKM is mandatory for all fuel system seals. Biodiesel (B20 and higher blends) contains fatty acid methyl esters that can degrade NBR more aggressively than petroleum diesel — FKM or specially formulated HNBR compounds are recommended for high-biodiesel applications. The material choice must also account for permeation rates, as fuel vapor emissions are regulated under EPA and CARB standards.
Transmission and driveline sealing presents its own material challenges. Modern automatic transmission fluids (ATF) including Dexron VI, Mercon LV, and OEM-specific formulations contain friction modifiers, anti-wear additives, and viscosity index improvers that can affect O-ring compatibility. While NBR is generally compatible with petroleum-based ATF, many late-model transmissions specify FKM or HNBR for extended service intervals and higher operating temperatures. Continuously variable transmissions (CVT) use specialized fluids with different additive packages that require material validation. For manual transmissions and differentials using gear oil (GL-4, GL-5), NBR remains the standard material, but high-performance applications may require FKM for extended drain intervals and high-temperature operation. Dual-clutch transmissions (DCT) generate significant heat during clutch engagement, and their hydraulic control systems often specify FKM for clutch actuator seals.
Cooling system and HVAC sealing uses primarily EPDM due to its excellent compatibility with glycol-based coolants (ethylene glycol and propylene glycol) and resistance to water and steam. EPDM also works with brake fluid (DOT 3, DOT 4, DOT 5.1) and power steering fluid in many applications. However, EPDM is absolutely incompatible with petroleum-based fluids — even brief contact with engine oil or fuel will cause rapid swelling and degradation. For air conditioning systems, the transition from R-134a to R-1234yf has introduced new compatibility requirements. R-1234yf operates at slightly higher pressures and uses polyolester (POE) lubricants that require specifically formulated FKM or HNBR compounds. Standard NBR and generic FKM may not be compatible with R-1234yf and its associated lubricants, leading to premature seal failure and refrigerant loss.
The most common O-ring failure modes in automotive applications include compression set from thermal aging (especially in engine and transmission applications), chemical swelling from incompatible fluids, abrasion wear from contaminated fluids, and extrusion under high pressure. In fuel systems, permeation through the O-ring material can cause evaporative emissions failures in emission testing. In cooling systems, EPDM degradation from oil contamination (due to a failed head gasket or oil cooler) causes rapid seal failure and coolant leaks. In turbocharger applications, thermal degradation of NBR causes oil leaks at the oil feed and return lines. Prevention requires correct material specification for each fluid and temperature condition, proper groove design with adequate squeeze and groove fill, clean fluid handling during assembly, and adherence to manufacturer-specified torque values to prevent over-compression.
Automotive O-ring standards include AS568 inch sizes for US-designed vehicles and metric sizes (JIS B 2401, DIN 3771) for Asian and European vehicles. Many OEMs specify proprietary groove designs with custom cross-sections and tolerances optimized for automated assembly. For aftermarket replacement, it is critical to match both the material specification and the dimensional tolerance of the original part — using an AS568 O-ring in a metric groove (or vice versa) can result in incorrect squeeze, leading to leakage or extrusion. Metric O-rings are specified by inside diameter and cross-section in millimeters, and the tolerances differ from AS568. We supply both AS568 and metric automotive O-rings, with cross-reference tables to match OEM part numbers to standard sizes where possible.
O-Ring Supply Co. provides automotive-grade O-rings with full material traceability and application engineering support. We offer custom kitting for automotive repair shops, fleet maintenance programs, and OEM assembly lines — including color-coded O-rings for error-proof assembly, lubricant-coated O-rings for automated installation, and custom packaging with barcoding for inventory management. Our engineering team can assist with material specification review, groove design optimization, and failure analysis for warranty return investigations. We maintain compatibility databases for major automotive fluids including engine oils, transmission fluids, coolants, refrigerants, and fuels, and can recommend the optimal material for any automotive sealing application.
Recommended Materials
NBR 70 Shore A
Engine oil seals, transmission O-rings, power steering seals, differential seals, and all mineral oil-based automotive fluid systems at moderate temperatures.
Temp: -40°C to +120°C
Note: Standard for petroleum-based automotive fluids. Not suitable for ethanol blends above E10 or biodiesel above B5.
FKM 75 Shore A
Fuel injector O-rings, fuel rail seals, turbocharger oil feed seals, high-temperature engine seals, and modern fuel systems including ethanol blends (E10, E85) and biodiesel.
Temp: -20°C to +200°C
Note: Required where temperatures exceed NBR limits or for modern high-aromatic fuels and ethanol blends. Specify low-temp FKM for cold climate starting below -15°C.
EPDM 70 Shore A
Cooling system O-rings, radiator hose connections, coolant circuit seals, brake fluid systems (glycol-based DOT 3/4/5.1), and water pump seals.
Temp: -50°C to +150°C
Note: Do not use in oil or fuel systems — EPDM swells and degrades rapidly in hydrocarbon contact.
FKM (special grade)
R-134a and R-1234yf air conditioning O-rings, compressor shaft seals, and refrigerant line connections in automotive HVAC systems.
Temp: -40°C to +150°C
Note: Specific compound grades for refrigerant compatibility — specify refrigerant type (R-134a or R-1234yf) when ordering.
HNBR 80 Shore A
High-temperature transmission seals, turbocharger actuator seals, power steering systems with synthetic fluids, and applications requiring improved abrasion resistance over NBR.
Temp: -30°C to +150°C
Note: Excellent balance of oil resistance and temperature capability. Higher tensile strength and wear resistance than standard NBR.
Silicone VMQ
Intake manifold gaskets, spark plug tube seals, PCV valve seals, and low-pressure static seals in engine air and vacuum systems.
Temp: -60°C to +220°C
Note: Excellent low-temperature flexibility and high-temperature air resistance. Not suitable for fuel, oil, or high-pressure dynamic applications.
Typical Applications
- Engine seals
- Transmission seals
- Fuel injection seals
- Cooling system seals
- Air conditioning seals
- Brake system seals
- Power steering seals
- Exhaust system seals
Relevant Standards
Frequently Asked Questions — Automotive
What O-ring material should I use for fuel injectors?
FKM is the recommended material for fuel injector O-rings in virtually all modern gasoline and diesel engines. Fuel injector seals operate in one of the most demanding environments in the automotive engine — they are exposed to high-pressure fuel (up to 350 bar in direct injection systems), elevated temperatures from the cylinder head, and aggressive fuel chemistry including ethanol blends (E10, E85), aromatic hydrocarbons, and fuel additives. Modern fuels — including ethanol blends and high-aromatic content gasoline — can cause NBR to swell excessively, soften, and lose mechanical strength, leading to fuel leaks at the injector body-to-rail connection or injector-to-intake manifold seal. FKM resists all common fuel types including biodiesel blends, ethanol-containing fuels, and high-aromatic gasoline. For flex-fuel vehicles (FFV) designed to run on E85, FKM is mandatory for all fuel system seals. When replacing fuel injector O-rings, always use the material specified by the vehicle manufacturer — substituting NBR to save cost will result in fuel leaks, potential fire hazards, and emission system failures. We supply FKM fuel injector O-rings in standard metric and AS568 sizes, with material certification confirming fuel compatibility.
Can I use NBR O-rings in a turbocharged engine?
NBR is suitable for standard oil pressure and cooling positions in turbocharged engines at moderate temperatures. However, turbocharger oil feed and return lines can reach +150°C locally, and turbine housing seals may exceed +200°C during high-load operation. At these temperatures, standard NBR experiences rapid thermal aging, compression set, and hardening, leading to oil leaks at the turbocharger connections. FKM should be specified for O-rings in turbocharger proximity, including oil feed line fittings, coolant line connections near the turbine housing, and actuator seals. Additionally, the oil in turbocharged engines often contains higher levels of combustion byproducts and thermal degradation products that can accelerate NBR aging. For high-performance and heavy-duty turbocharged engines, HNBR provides an intermediate option — it offers better temperature resistance than NBR (up to +150°C continuous) with lower cost than FKM, making it suitable for turbocharger actuator seals and some oil system connections. When sourcing replacement O-rings for turbocharged engines, consult the service manual for the specified material at each location, as manufacturers increasingly specify FKM or HNBR for extended service life and warranty compliance.
What O-ring material works with modern automatic transmission fluids?
Modern ATF (Automatic Transmission Fluid), including Dexron VI, Mercon LV, and OEM-specific formulations, is generally compatible with NBR for standard service intervals. However, many late-model transmission O-rings are factory-specified as FKM or HNBR for extended service intervals (100,000+ miles) and higher operating temperatures. The shift to 8, 9, and 10-speed automatic transmissions has increased internal pressures and operating temperatures, placing greater thermal stress on seals. CVT (Continuously Variable Transmission) fluids contain specialized friction modifiers and additive packages that require material validation — while NBR is typically compatible, some CVT manufacturers specify FKM for clutch pack seals and high-pressure control valve O-rings. For dual-clutch transmissions (DCT), the hydraulic control systems that operate the clutch actuators generate significant heat during launch and shift events, and FKM is often specified for these seals. When sourcing replacement seals for transmission service, check the original equipment specification in the service manual. Using an incorrect material can lead to fluid leaks, clutch slippage, shift quality issues, and premature transmission failure. We supply transmission O-rings in NBR, HNBR, and FKM with material data sheets confirming compatibility with major ATF formulations.
Which O-ring material for R-1234yf air conditioning?
R-1234yf (the replacement for R-134a under EPA and EU regulations) requires specifically formulated O-ring compounds. Standard FKM or NBR may not be compatible with R-1234yf and its associated polyolester (POE) lubricants. R-1234yf operates at slightly higher discharge pressures than R-134a and has different solubility characteristics that can cause swelling in incompatible elastomers. NBR is generally not recommended for R-1234yf service because it can exhibit excessive swelling and loss of mechanical properties when exposed to R-1234yf and POE oil mixtures. FKM compounds specifically formulated and tested for R-1234yf compatibility are the standard material for automotive A/C system O-rings, compressor shaft seals, and refrigerant line connections. HNBR compounds validated for R-1234yf are also available as a lower-cost alternative for some static seal applications. Use O-rings specifically rated for R-1234yf service — contact us with the application details (compressor type, refrigerant, and lubricant) for the correct compound recommendation. We supply R-1234yf-compatible O-rings with material test data confirming compliance to SAE J2842 and OEM refrigerant compatibility requirements.
Best O-ring brands for automotive applications?
Quality automotive O-rings are produced by several manufacturers including Parker, Trelleborg, NOK, Freudenberg, and Greene Tweed. These manufacturers supply OE seals to major automotive OEMs and aftermarket channels. Our factory-direct O-rings are manufactured to equivalent quality standards with full material traceability, using the same compound formulations and production processes as Tier 1 automotive suppliers. We source raw polymers from major chemical manufacturers including Chemours (Viton), ARLANXEO (Keltan, Therban), and Momentive (silicone), and compound them in ISO-certified facilities with batch control and testing. For OEM replacement applications, verify that the material specification, hardness, and dimensional tolerances match the original equipment requirements — brand name alone does not guarantee compatibility. We provide material data sheets, batch certificates, and dimensional inspection reports with every automotive O-ring order, ensuring that your replacement seals meet the same performance standards as the original parts. For high-volume automotive production and aftermarket distribution, we offer custom packaging, barcoding, and private labeling services.
What causes O-ring leaks in automotive cooling systems, and how can they be prevented?
O-ring leaks in automotive cooling systems are most commonly caused by material incompatibility, thermal cycling, and contamination. EPDM is the standard material for cooling system O-rings because it resists glycol-based coolants (ethylene glycol and propylene glycol), water, and steam. However, EPDM is completely incompatible with petroleum-based fluids — if engine oil or transmission fluid contaminates the cooling system (due to a failed head gasket, oil cooler, or transmission cooler), the EPDM seals will swell excessively, soften, and fail within days. Another common cause is compression set from thermal cycling — cooling system O-rings heat to 90-120°C during normal operation and cool to ambient when the engine is off. Over thousands of cycles, EPDM can lose elastic recovery, reducing sealing force at the flange or hose connection. Degraded coolant with low pH (acidic) or high chloride content can also attack EPDM over time. Prevention strategies include using the correct EPDM compound for the specific coolant formulation (long-life OAT, HOAT, or traditional IAT coolants have different additive packages), ensuring clean assembly surfaces without scratches or pitting, replacing O-rings whenever a connection is disturbed during service, and addressing any oil or fuel contamination in the cooling system immediately. We supply EPDM cooling system O-rings formulated for compatibility with all major coolant types, with color coding available for error-proof assembly.
How long do automotive O-rings typically last before replacement?
Automotive O-ring service life varies dramatically depending on material, application, temperature, and fluid exposure. In general, engine oil system O-rings in NBR last 5-7 years or 60,000-100,000 miles under normal driving conditions before compression set and thermal aging reduce sealing effectiveness. Fuel system O-rings in FKM can last 10-15 years or 150,000+ miles due to FKM's superior thermal and chemical stability. Cooling system EPDM O-rings typically last 8-10 years, though coolant type affects longevity — long-life OAT coolants are generally less aggressive toward EPDM than traditional inorganic additive technology (IAT) coolants. Transmission seals vary widely: NBR seals in conventional automatic transmissions may need attention at 100,000 miles, while FKM or HNBR seals in modern high-temperature transmissions can exceed 150,000 miles. Air conditioning O-rings are often replaced during compressor or condenser service — refrigerant leakage rates increase as O-ring compression set develops, and most A/C systems benefit from seal replacement every 5-7 years. For high-performance and turbocharged engines, thermal stress reduces seal life by 20-30% compared to naturally aspirated engines. We recommend inspecting O-ring seals during routine maintenance and replacing any seal that shows visible cracking, hardening, swelling, or deformation. Proactive replacement during component service (water pump, thermostat, fuel pump, etc.) prevents unexpected leaks and roadside failures.
What is the correct squeeze percentage for automotive O-ring grooves?
O-ring squeeze percentage is the amount by which the O-ring cross-section is compressed when installed in the groove — it is the primary determinant of sealing force and long-term performance. For automotive static seals (flange connections, cover plates, sensor fittings), the recommended squeeze is 15-25% of the O-ring cross-sectional diameter. For dynamic seals (piston seals, rod seals, valve spools), the squeeze should be reduced to 10-15% to minimize friction, heat generation, and wear. Excessive squeeze (above 30%) causes rapid compression set, increased friction, and potential extrusion into clearance gaps. Insufficient squeeze (below 8% for static, below 5% for dynamic) results in inadequate sealing force and leakage, especially as the material ages and loses elastic recovery. Groove fill percentage — the ratio of O-ring volume to groove volume — should be between 65% and 85% to allow for thermal expansion without overfilling the groove. Surface finish requirements vary: static sealing surfaces should be 0.8-1.6 µm Ra, while dynamic surfaces require 0.2-0.4 µm Ra to minimize abrasion. Lead-in chamfers (15-20°) are essential on dynamic components to prevent O-ring damage during assembly. We provide groove design calculators and technical datasheets for automotive O-ring applications, and our engineering team can review your groove drawings for optimal squeeze and fill percentages.
Can automotive O-rings be used with synthetic engine oils?
Yes, but material selection must be validated for the specific synthetic oil formulation. Modern synthetic engine oils (full synthetic and synthetic blends) include base stocks such as PAO (polyalphaolefin), ester, and Group III hydrocracked oils, combined with additive packages containing detergents, dispersants, anti-wear agents (ZDDP), and viscosity modifiers. NBR is generally compatible with most synthetic engine oils, but some high-ester-content formulations can cause slightly more swelling than mineral-based oils. FKM provides superior compatibility with all synthetic oil types and is the material of choice for high-performance engines where oil temperatures exceed +120°C. HNBR offers improved resistance to ZDDP additives and oxidation byproducts compared to standard NBR, making it suitable for extended drain interval applications (15,000+ miles). One consideration is that some synthetic oils have higher solvency and detergency than conventional oils, which can wash away assembly lubricants and cause O-ring rolling or twisting during initial startup if squeeze is marginal. For engines running full synthetic oils in severe service (towing, track use, high ambient temperatures), we recommend upgrading from NBR to HNBR or FKM for oil filter seals, oil cooler connections, and valve cover gaskets to ensure seal integrity over extended drain intervals. We maintain compatibility data for major synthetic oil brands and formulations and can provide material recommendations based on your specific oil specification.
Do you supply custom O-ring kits for automotive repair shops and OEMs?
Yes, we supply custom O-ring kits tailored to the specific needs of automotive repair shops, fleet maintenance programs, OEM assembly lines, and aftermarket distributors. Our standard automotive O-ring kits contain the most commonly used metric and AS568 sizes for engine, transmission, cooling, fuel, and brake system service. Custom kits can be organized by vehicle make and model (e.g., a kit containing all O-rings needed for a specific engine or transmission rebuild), by system (engine kit, transmission kit, A/C kit, brake kit), or by maintenance interval (preventive maintenance kits for fleet vehicles). Each kit includes O-rings in the correct materials for the application — NBR for oil systems, FKM for fuel and high-temperature seals, EPDM for cooling systems, and specialized compounds for A/C refrigerant service. We offer color-coded O-rings for error-proof assembly in high-volume production environments, pre-lubricated O-rings for automated installation equipment, and custom packaging with barcoding, part numbering, and installation instructions. For OEM customers, we support just-in-time (JIT) delivery, kanban inventory management, and electronic data interchange (EDI) ordering. All kit components are manufactured from automotive-grade compounds with batch traceability and material certificates. Contact us with your kit requirements, and our applications engineering team will design a customized solution optimized for your service operation or production line.
