Garden Hose O-Rings
EPDM and NBR seals for hose fittings, quick-connect couplers and spray nozzles. Outdoor UV resistant.

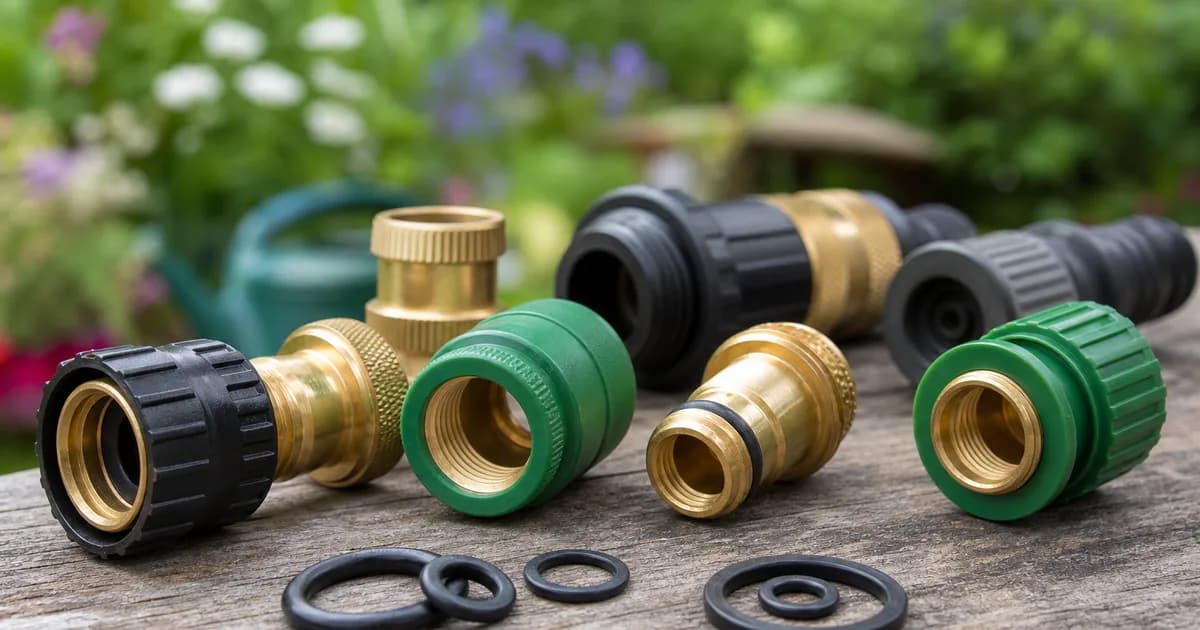

Garden hose connections use O-rings to seal threaded fittings, quick-connect couplers, spray nozzles, and faucet adapters. These seals must survive outdoor UV exposure, temperature cycling from freezing winters to hot summer sun, chlorinated municipal water, and the mechanical stress from repeated connect/disconnect cycles. A leaking hose O-ring wastes water, reduces spray pressure, and can damage surrounding surfaces from continuous dripping. **Where O-Rings Seal in Garden Hose Systems** **Hose-end threaded fittings.** Standard garden hoses use 3/4 inch GHT (Garden Hose Thread) fittings with a rubber washer or O-ring to seal against the faucet or another hose. The seal is compressed between the hose fitting and the mating surface when the connection is tightened hand-tight. **Quick-connect couplers.** Quick-connect hose fittings use an internal O-ring that seals when the male and female halves are pushed together. These seals must survive thousands of connect/disconnect cycles without losing resilience. The O-ring is often hidden inside the coupler and difficult to inspect. **Spray nozzles and wands.** Hose-end spray nozzles, pressure washers, and watering wands use O-rings at the nozzle body joints and trigger valve seals. These seals must survive water pressure (up to 8 bar from municipal supply) and the opening/closing motion of the trigger valve. **Faucet adapters and Y-splitters.** Hose adapters, Y-splitters, and shutoff valves use O-rings at the swivel joints and valve stems. These seals must survive outdoor UV, temperature extremes, and the torque from hand-tightening. **Outdoor Environmental Challenges** UV radiation degrades standard NBR within one season of outdoor exposure, causing surface cracking and hardening. [EPDM](/products/epdm/) is the preferred material for garden hose seals — it resists UV and ozone for 5+ years outdoors. [NBR](/products/nbr/) is acceptable for hoses stored indoors but will crack after one summer of direct sun exposure. Silicone grease is the recommended lubricant — petroleum grease attacks EPDM.
Application Requirements
Recommended Materials
EPDM 70 Shore A
The standard for all outdoor garden hose fittings, quick-connects, and spray nozzles. Superior UV and ozone resistance for 5+ year outdoor life.
Temp: -50°C to +150°C
Black EPDM is the OEM standard for garden hose washers and O-rings. Resists chlorinated water and UV. Use silicone grease only.
NBR 70 Shore A
Indoor hose connections, utility sinks, and temporary setups where UV exposure is minimal.
Temp: -40°C to +120°C
Lower cost than EPDM but cracks after one season of direct sun. Only suitable for indoor or shaded use.
VMQ (Silicone) 70 Shore A
High-end spray nozzles and quick-connects requiring maximum flexibility and low-temperature performance.
Temp: -60°C to +230°C
Extremely flexible for frequent connect/disconnect. FDA grades available. Lower abrasion resistance than EPDM.
Design Tips
- 1.Use EPDM for all outdoor garden hose connections — UV destroys NBR within one summer season.
- 2.Replace hose washer O-rings every spring — winter hardening and UV exposure degrade the seal during storage.
- 3.Use silicone grease on all hose O-rings — petroleum grease attacks EPDM and contaminates garden water.
- 4.Inspect quick-connect coupler O-rings at the start of every season — hidden internal seals are often overlooked until they leak.
- 5.Do not overtighten plastic hose fittings — hand-tight plus 1/4 turn is sufficient. Excessive torque cracks plastic and crushes the O-ring.
- 6.For hose Y-splitters and shutoff valves, inspect O-rings before every season — these seals see the most mechanical stress from valve operation.
- 7.Store hoses and spare O-rings out of direct sunlight — UV degrades rubber even during storage.
- 8.Keep a hose repair kit with common washer sizes (3/4 inch flat washers and 12×2, 14×2.5 mm O-rings) — most hose leaks are fixed in minutes.
Common Sizes
| Size | Typical Use |
|---|---|
| 3/4 inch flat washer (19×2.5 mm) | Standard garden hose thread (GHT) fitting washer |
| Metric 12×2 mm | Small quick-connect coupler internal seal |
| Metric 14×2.5 mm | Standard quick-connect coupler seal, spray nozzle joint |
| Metric 16×2.5 mm | Large quick-connect and pressure washer fitting |
| Metric 10×2 mm | Spray wand trigger valve seal, small adapter fitting |
| Metric 18×2.5 mm | Y-splitter and shutoff valve swivel seal |
| Metric 8×1.5 mm | Small nozzle and mister fitting seal |
Frequently Asked Questions
What O-ring material is best for garden hoses?
EPDM 70 Shore A is the standard for all outdoor garden hose fittings and washers. It resists UV radiation, ozone, chlorinated water, and temperature extremes for 5+ years. NBR is only suitable for indoor or shaded use — direct sunlight destroys NBR within one season. VMQ silicone is an alternative for high-end quick-connects requiring maximum flexibility.
Why does my garden hose leak at the connection?
The most common cause is a worn or missing washer/O-ring at the hose fitting. The seal hardens from UV exposure, takes compression set, or is lost during disconnection. Fix: remove the hose fitting, inspect the washer/O-ring for cracks or flattening, replace with a new EPDM washer or O-ring, and reconnect hand-tight. For quick-connect couplers, disassemble the coupler and replace the internal O-ring.
Can I use NBR for garden hose O-rings?
Only for indoor or temporary outdoor use. NBR degrades rapidly in direct sunlight — UV causes surface cracking and hardening within one summer season. For any hose left outdoors, specify EPDM. The cost difference is minimal, and EPDM lasts 3–5× longer in outdoor conditions.
What size washer fits a standard garden hose?
Standard garden hoses use a 3/4 inch GHT (Garden Hose Thread) fitting with a flat washer approximately 19 mm OD × 2.5 mm thick. Some quick-connect couplers use O-ring seals: 12×2 mm for small couplers, 14×2.5 mm for standard couplers, and 16×2.5 mm for large couplers. Always measure the removed seal or check the manufacturer specification.
How do I stop a quick-connect hose fitting from leaking?
Disassemble the quick-connect coupler, remove the internal O-ring, clean the groove, inspect the O-ring for cracks or compression set, replace with a new EPDM O-ring lubricated with silicone grease, and reassemble. If the leak persists, inspect the coupler body for cracks or deformation — damaged plastic couplers cannot be repaired and must be replaced.
Do you supply garden hose O-ring kits?
Yes, we supply garden hose O-ring and washer kits containing EPDM seals for standard 3/4 inch hose fittings, quick-connect couplers, spray nozzles, and Y-splitters. Kits include flat washers and O-rings in sizes from 8×1.5 mm to 19×2.5 mm. Custom kits for specific brands (Gilmour, Melnor, Orbit, Dramm) are available on request. MOQ from 1 kit.
